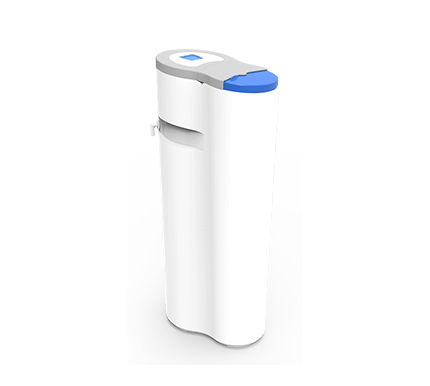

CS13H High Cover Styles
Features:

Compact body design to save space.

Humanized designed handle to easily move the machine.

Unique lateral rotary salt lid design.

Multiple languages for operation.

Core components made in house, better quality control.

Exclusive NSF certified electronic control valve with reliable piston, seal and spacer technology.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Specification
Model CS13H-1017CS13H-1035
Control System BNT-850SE(UF)
Regeneration Type Up Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage)401801
(@96 g/L salt dosage)6301259
(@160 g/L salt dosage)7581517
Tank Size10x1710x35
Resin Quantity12.5L25L
Salt Storage Capacity17Kg47Kg
Rated Service Flow Rate17L/M33L/M
Back Wash Flow Rate9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
60L132L
Product Dimension(DxWxH mm)485x300x650485x300x1110
Carton Size(mm)
550x335x770550x335x1240
Shipping Weight26Kg42Kg
Container Capacity(40" HQ)
453pcs302pcs
Plumbing Connections3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water SupplyMunicipal
Water Temperature 4~43
Operating Pressure 0.21~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
