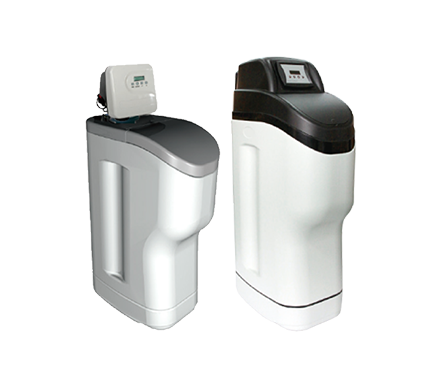

CS2L / CS2H Low Cover & High Cover
Features:

Compact body design to save space.

Humanized designed handle to easily move the machine.

Multiple languages for operation.

Core components made in house, better quality control.

Exclusive NSF certified electronic control valve with reliable piston, seal and spacer technology.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Specification
Model CS2L-1035CS2H-1035
Control System BNT-4650FBNT-850F
Regeneration TypeDown Flow
Regeneration ModeMeter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage)801801
(@96 g/L salt dosage)12591259
(@160 g/L salt dosage)15171517
Tank Size10x3510x35
Resin Quantity25L25L
Salt Storage Capacity75Kg75Kg
Rated Service Flow Rate33L/M33L/M
Back Wash Flow Rate9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
111L111L
Product Dimension(DxWxH mm)600x350x1100600x350x1100
Carton Size(mm)
640x365x1170640x365x1170
Shipping Weight43Kg43Kg
Container Capacity(40" HQ)
222pcs222pcs
Plumbing Connections3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water SupplyMunicipal
Operating Temperature4~43
Operating Pressure
0.21~0.86 Mpa
Water Temperature3~38
Water Pressure 0.14~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
