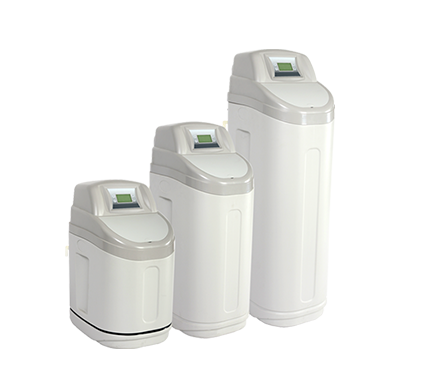

CS6H High Cover Styles
Features:

Compact body design to save space.

Humanized designed handle to easily move the machine.

Multiple languages for operation.

Core components made in house, better quality control.

Exclusive NSF certified electronic control valve with reliable piston, seal and spacer technology.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Specification
Model CS6H-1017 CS6H-1026 CS6H-1035
Control System BNT-850F
Regeneration Type Down Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage) 401 577 801
(@96 g/L salt dosage) 630 907 1259
(@160 g/L salt dosage) 758 1092 1517
Tank Size 10x17 10x26 10x35
Resin Quantity 12.5L 18L 25L
Salt Storage Capacity 23Kg 41Kg 61Kg
Rated Service Flow Rate 17L/M 24L/M 33L/M
Back Wash Flow Rate 9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
58L 92L 127L
Product Dimension(DxWxH mm) 499x330x604 499x330x835 499x300x1060
Carton Size(mm)
520x360x740 520x360x950 520x360x1170
Shipping Weight 23Kg 31Kg 41Kg
Container Capacity(40" HQ)
414pcs 276pcs 276pcs
Plumbing Connections 3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water Supply Municipal
Water Temperature 4~43
Operating Pressure 0.21~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
