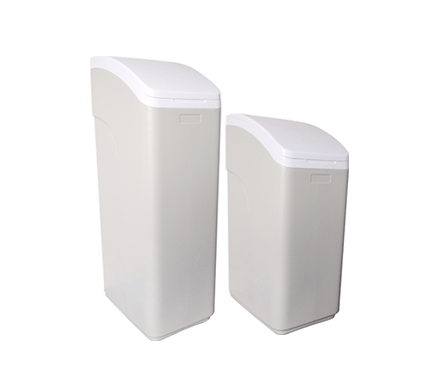

CS11H High Cover Styles

Compact body design to save space.

Humanized designed handle to easily move the machine.

Flip cover design, easy for adding salt.

Core components made in house, better quality control.

Exclusive NSF certified electronic control valve with reliable piston, seal and spacer technology.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Model CS11H-1026 CS11H-1035
Control System BNT-850SE(UF)
Regeneration Type Up Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
(@48 g/L salt dosage) 577 801
(@96 g/L salt dosage) 907 1259
(@160 g/L salt dosage) 1092 1517
Tank Size 10x26 10x35
Resin Quantity 18L 25L
Salt Storage Capacity 46Kg 79Kg
Rated Service Flow Rate 24L/M 33L/M
Back Wash Flow Rate 9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
96L 132L
Product Dimension(DxWxH mm) 520x330x867 520x330x1096
Carton Size(mm)
565x370x910 565x370x1170
Shipping Weight 35Kg 43Kg
Container Capacity(40" HQ)
256pcs 256pcs
Plumbing Connections 3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water Supply Municipal
Water Temperature 4~43
Operating Pressure 0.21~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
