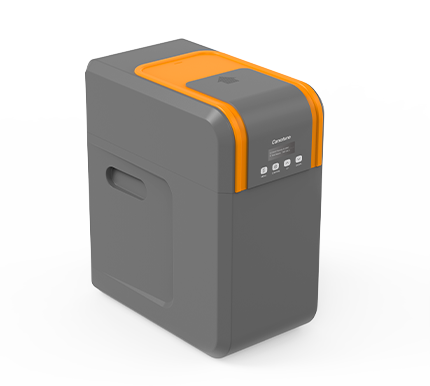

Compact body design, perfect for under-sink installation.
Smart control system provides fully automatic service.
Exquisite small screen, lower cost design while maintains strong functions.
Meter or time style regen mode optional.
Push-pull style cover, easily push the cover open for salt adding.
| Model | CS21H-0915 | CS21H-0926 | CS21H-0935 | |
|---|---|---|---|---|
| Control System | BNT-850SE(UF) | |||
| Regeneration Type | Up Flow | |||
| Regeneration Mode |
Days,Calendar Weekdays,Meter Immediate ,Meter Delay,MD Days Override,MI Days Override |
|||
|
Hardness Removal (Gram) |
(@48 g/L salt dosage) |
281 |
597 | 865 |
| (@96 g/L salt dosage) | 377 | 1050 | 1522 | |
| (@160 g/L salt dosage) | 409 | 1486 | 2154 | |
| Tank Size | 09x15 | 09x26 | 09x35 | |
| Resin Quantity(L) | 10.5 | 20 | 28.9 | |
| Salt Storage Capacity(Kg) | 21 | 42 | 58 | |
| Rated Service Flow(m³/H) | 1.0 | 1.6 | 1.9 | |
| Back Wash Flow Rate(L/M) | 5.7 | 7.5 | 7.5 | |
|
Water Used Per Regeneration(L) (@ 96 g/L salt dosage) |
41 | 77 | 83 | |
| Product Dimension(DxWxH mm) | 300×300×476 |
300×300×706 |
300×300×935 | |
| Plumbing Connections | 3/4” or 1” Fittings Available | |||
| Electrical Requirements | Input 110V-120V / 220-240V AC 50/60 Hz | |||
|
Output 12V AC 650mA |
||||
|
Water Supply |
Municipal | |||
|
Water Temperature(℃ ) |
4 ～ 43 | |||
|
Operating Pressure(MPa) |
0.21 ～ 0.86 |
|||
|
Notes: 1. The data of softener performance is only for reference, it may vary from different water qualities and applications. 2. Rated Service Flow is based on NSF/ANSI Standard 44. |
||||
