CS6H
Features:

Slide cover design, novel and practical, for easy salt refilling and checking.

Valve body is concealed inside the slide cover and the timer is removable for easy access.

Compact body design to save space.

Humanized designed handle to easily move the machine.

Core components made in house, better quality control.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.


Specification

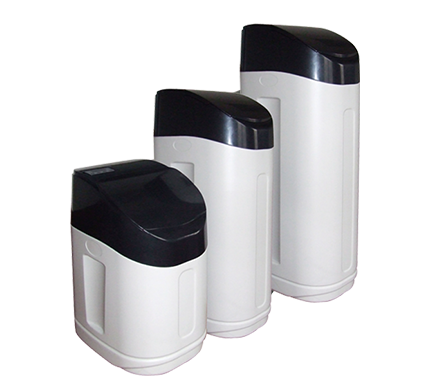

Model CS6H-1017(slide) CS6H-1026(slide) CS6H-1035(slide)
Control System BNT-850HE(UF)
Regeneration Type Up Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage) 401 577 801
(@96 g/L salt dosage) 630 907 1259
(@160 g/L salt dosage) 758 1092 1517
Tank Size 10x17 10x26 10x35
Resin Quantity 12.5L 18L 25L
Salt Storage Capacity 23Kg 41Kg 61Kg
Rated Service Flow Rate 17L/M 24L/M 33L/M
Back Wash Flow Rate 9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
60L 96L 132L
Product Dimension(DxWxH mm) 499x330x575 499x330x806 499x300x1030
Carton Size(mm)
520x360x740 520x360x950 520x360x1170
Shipping Weight 22Kg 31Kg 39Kg
Container Capacity(40" HQ)
414pcs 276pcs 276pcs
Plumbing Connections 3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water Supply Municipal
Water Temperature 4~43
Operating Pressure 0.21~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
