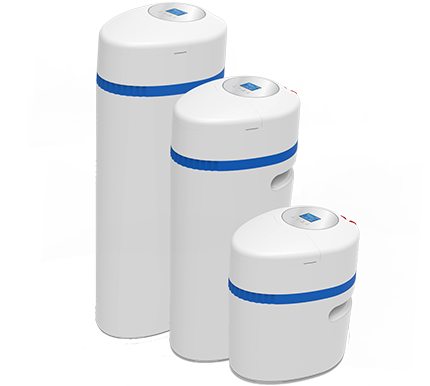

Water Softener CS17
Features:

User-friendly large color LCD display, humanized interface design.

Touch keys design on a high strength tempered glass, high end and easy to operate.

Brine valve with safety float and provide extra overflow protection.

Smart Clean technology will have system flushing the water and media in tank automatically during your vacation time.

Residual chlorine generator is optional, thus killing the bacteria or other relevant microbes that affect the water quality in the resin tank.

Specification
Model CS17-1015 CS17H-1035 CS17H-1044 CS17H-1135
CS17H-1144
Control System BNT-850SE(UF)
Regeneration Type Up Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage) 309
781 980 963 1198
(@96 g/L salt dosage) 512 1590 2014 1961 2438
(@160 g/L salt dosage) 669 2306 2920 2844 3536
Tank Size 10x15 10x35 10x44 11x35 11x44
Resin Quantity(L) 12 30 38 37 46
Salt Storage Capacity(Kg) 15 56 75 51 68
Rated Service Flow(m³/H) 1.0 2.0 2.0 2.4 2.4
Back Wash Flow Rate(L/M) 7.5
9.0 9.0 11.4 11.4
Water Used Per Regeneration(L)
(@ 96 g/L salt dosage)
42 118 156 170 225
Product Dimension(DxWxH mm) 485x370x541 485x370x1051 485x370x1278 485x370x1051 485x370x1278
Carton Size(D×W×H mm)
576x434x655 576x434x1175 576x434x1400 576x434x1175 576x434x1400
Plumbing Connections 3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water Supply Municipal
Water Temperature(℃) 4~43
Operating Pressure(MPa) 0.21~0.86
Notes: 1. The data of softener performance is only for reference, it may vary from different water qualities and applications.
2. Rated Service Flow is based on NSF/ANSI Standard 44.
