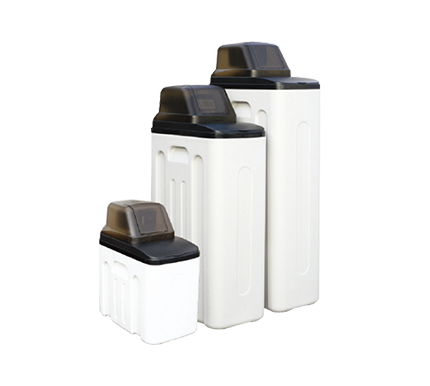

CS3L Low Cover Styles
Features:

Compact body design to save space.

Humanized designed handle to easily move the machine.

Multiple languages for operation.

Core components made in house, better quality control.

Exclusive NSF certified electronic control valve with reliable piston, seal and spacer technology.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Specification
Model CS3L-1017 CS3L-1035 CS3L-1044
Control System BNT-1650F
Regeneration Type Down Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage) 401 801 1026
(@96 g/L salt dosage) 630 1259 1612
(@160 g/L salt dosage) 758 1517 1942
Tank Size 10x17 10x35 10x44
Resin Quantity 12.5L 25L 32L
Salt Storage Capacity 33Kg 75Kg 103Kg
Rated Service Flow Rate 17L/M 33L/M 43L/M
Back Wash Flow Rate 9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
58L 127L 168L
Product Dimension(DxWxH mm) 570x334x660 570x334x1120 570x334x1350
Carton Size(mm)
610x360x740 610x360x1170 610x360x1390
Shipping Weight 24Kg 40Kg 52Kg
Container Capacity(40" HQ)
372pcs 248pcs 124pcs
Plumbing Connections 3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water Supply Municipal
Water Temperature 4~43℃
Operating Pressure 0.21~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
