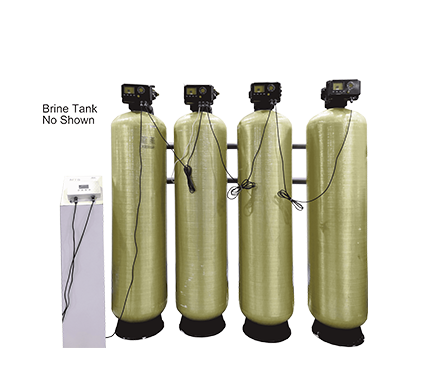

Multiple Tanks System(MTS)
Features:

MTS controller: Fully Programmable remote mounted control box. available to BNT 95 and 95HF valves control.

Parallel Flow: All tanks on-line and are interlocked so only one can regenerate at a time.

Alternating Flow: At least one tank is always off-line for regeneration or ready in standby.

Demand Flow: Tanks come on or off-line according to the flow rate demand so that the system is always operating at optimum efficiency.

Remote start singnal input: A remote button to be added so that a manual regeneration can be initiated from another location.

System interlock: A external signal can be accepted to lock out and prevent the system from regenerating.

Advanced Diagnostic Information: Easily trouble shoot and access system information displayed in real time.

Auxiliary Outputs: Up to two programmable outputs / relays can be added.

Battery Backup system: In the event of a power loss, the system can continue to meter and monitor water usage for up to nine hours.

Polishing Rinse is optinal: A small pump recycles water from outlet to the inlet to keep the product water polished for high quality.

All systems are available in single, duplex, triplex, and quadplex operation.

Specification
Specifications MTS _ -3 MTS _ -4 MTS _ -5 MTS _ -7 MTS _ -10

High Efficiency (48g/l)


Salt Used - Kg

4.1

5.4 6.8 9.5 13.6
System Capacity - Gram CaCO3 2,700
3,600 4,550 6,350 9,100
Standard Capacity (96g/l)
Salt Used - Kg 8.2 10.9 13.6 19.1 27.2
System Capacity - Gram CaCO3 4,700
6,200 7,800 10,900 15,500
High Capacity (160 g/l)
Salt Used - Kg 13.6 18.1 22.7 31.8 45.4
System Capacity - Gram CaCO3 5,800 7,800 9,700 13,600 19,400

Flow Rate per tank:


Flow Rate @15 psi Pressure Drop - T/H 3.0 3.9 4.9 6.7 8.8
Back Wash Flow Rate - T/H 1.5 2.0 2.5
3.5 4.0
Resin Quantity (Litre)
85 113 142 198 283

Tank Size

14x65 16x65 18x65 21x62 24x72
Brine Tank Size/ Volume Ø 585 x 1040mm / 200L
Salt Storage Capacity

250 Kg

Plumbing Connections

1", 1.25", 1.5" BSP.NPT
Resin Type Canature 8% High Capacity Ion Exchange Resin
Electrical Requirements 120V-240V 50/60 Hz --- 24VAC
Water Temperature Min 1 - Max. 42 Degrees Celsius
Water Pressure Min. 0.14 - Max. 0.87 Mpa
Notes: The data of system performance is only for reference, it may vary from different water quality and application.
