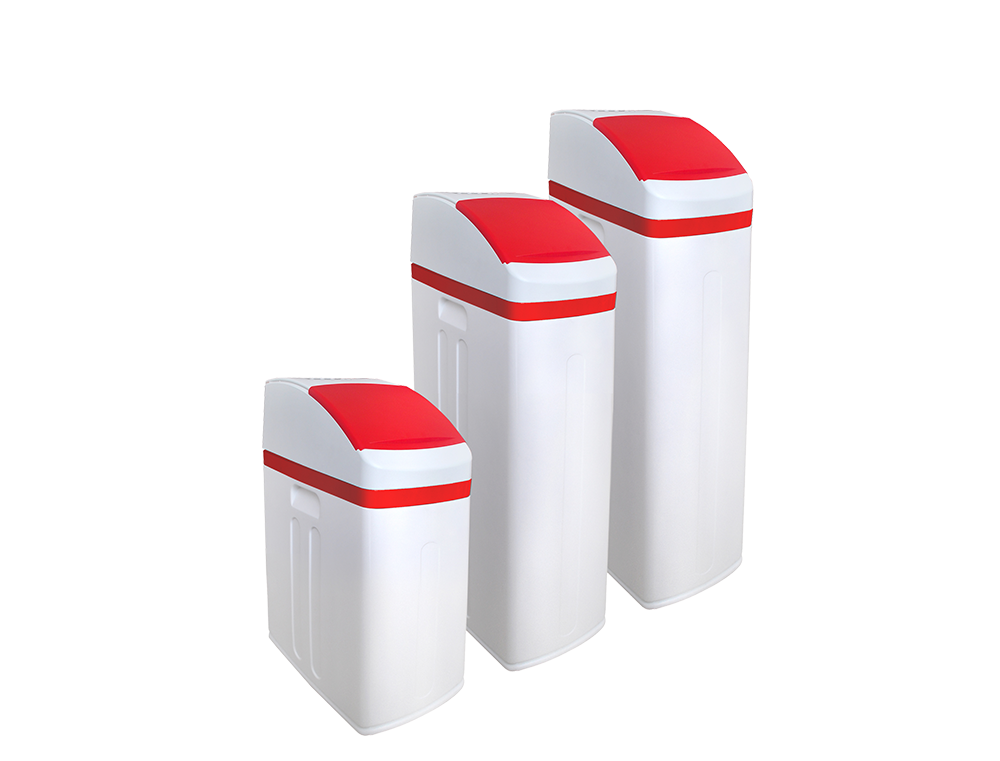

Slide cover design, novel and practical, for easy salt refilling and checking.
Valve body is concealed inside the slide cover and the timer is removable for easy access.
Compact body design to save space.
Humanized designed handle to easily move the machine.
Core components made in house, better quality control.
Time saving quick connect fittings on bypass, drain and brine line.
Brine valve with safety float to provide extra overflow protection.
| Model | CS4H-0817 | CS4H-0835 | CS4H-0844 | |
|---|---|---|---|---|
|
Color |
Red/Blue |
|||
| Control System | BNT-850F | |||
| Regeneration Type | Down Flow | |||
| Regeneration Mode | Meter Immediate, Meter Delayed, Meter Override, Vacation | |||
|
Hardness Removal (Gram) |
(@48 g/L salt dosage) |
256 |
577 | 673 |
| (@96 g/L salt dosage) | 403 | 907 | 1058 | |
| (@160 g/L salt dosage) | 485 | 1092 | 1274 | |
| Tank Size | 08x17 | 08x35 | 08x44 | |
| Resin Quantity | 8L | 18L | 21L | |
| Salt Storage Capacity | 21Kg | 46Kg | 59Kg | |
| Rated Service Flow Rate | 11L/M | 24L/M | 28L/M | |
| Back Wash Flow Rate |
5.7L/M |
|||
|
Water Used Per REgeneration (@96g/L salt dosage) |
37L | 81L | 105L | |
| Product Dimension(DxWxH mm) | 440x225x640 | 440x225x1110 | 440x225x1330 | |
|
Carton Size(mm) |
520x235x740 | 520x235x1170 | 520x235x1390 | |
|
Shipping Weight |
16Kg | 20Kg | 36Kg | |
|
Container Capacity（40“HC） |
690pcs | 460pcs | 230pcs | |
| Plumbing Connections | 3/4" or 1" Fittings Available | |||
| Electrical Requirements | Input 110V-120V / 220-240V AC 50/60 Hz | |||
|
Output 12V AC 650mA |
||||
| Water Supply | Municipal | |||
| Water Temperature | 4~43℃ | |||
| Operating Pressure | 0.21~0.86 Mpa | |||
| Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications. | ||||
