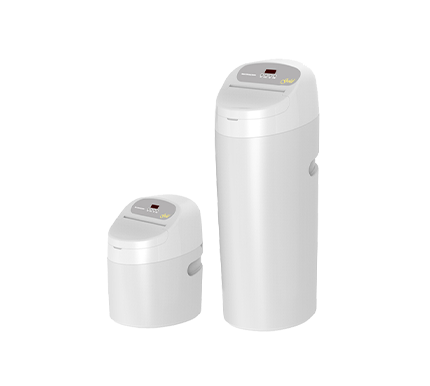

CS15H High Cover Styles

Unique design form the idea of "leaf".

Humanized designed handle to easily move the machine.

Multiple languages for operation.

Core components made in house, better quality control.

Exclusive NSF certified electronic control valve with reliable piston, seal and spacer technology.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Model CS15H-1015 CS15H-1035
Control System BNT-850F
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
(@48 g/L salt dosage) 321 801
(@96 g/L salt dosage) 504 1259
(@160 g/L salt dosage) 607 1517
Tank Size 10x15 10x35
Resin Quantity 10L 25L
Salt Storage Capacity 18Kg 52Kg
Rated Service Flow Rate 13L/M 33L/M
Back Wash Flow Rate 9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
46L 127L
Product Dimension(DxWxH mm) 501x346x576 501x346x1086
Carton Size(mm)
527x362x640 527x362x1150
Shipping Weight 18.2Kg 38.6Kg
Container Capacity(40" HQ)
584pcs 276pcs
Plumbing Connections 3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water Supply Municipal
Water Temperature 4~43
Operating Pressure 0.21~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
