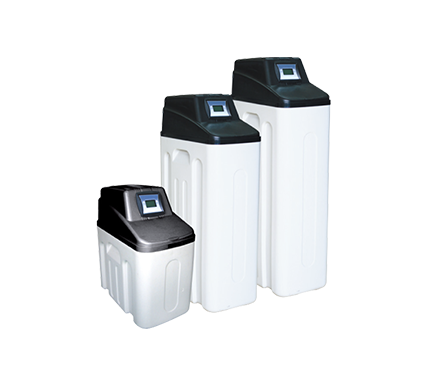

CS3H
Features:

Cabinet is designed with high salt storage capacity.

Compact body design to save space.

Humanized designed handle to easily move the machine.

Multiple languages for operation.

Core components made in house, better quality control.

Exclusive NSF certified electronic control valve with reliable piston, seal and spacer technology.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Specification
Model CS3H-1017 CS3H-1035 CS3H-1044
Control System BNT-850SE
Regeneration TypeDown Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage)4018011026
(@96 g/L salt dosage)63012591612
(@160 g/L salt dosage)75815171942
Tank Size10x1710x3510x44
Resin Quantity12.5L25L32L
Salt Storage Capacity33Kg75Kg103Kg
Rated Service Flow Rate17L/M33L/M43L/M
Back Wash Flow Rate9L/M
Water Used Per REgeneration
(@96g/L salt dosage)
58L127L168L
Product Dimension(DxWxH mm)570x334x660570x334x1120570x334x1360
Carton Size(mm)
619x360x740619x360x1170619x360x1390
Shipping Weight25Kg40Kg52Kg
Container Capacity(40" HQ)
372pcs248pcs124pcs
Plumbing Connections3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water SupplyMunicipal
Water Temperature 4~43
Operating Pressure 0.21~0.86 Mpa
Notes: The data of softener perform ance is only for reference. it may vary from diffrent water qualities and applications.
