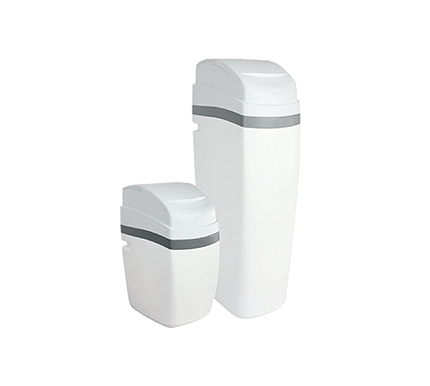

CS10H
Features:

Slide cover design, novel and practical, for easy salt refilling and checking.

Valve body is concealed inside the slide cover and the timer is removable for easy access.

Compact body design to save space.

Humanized designed handle to easily move the machine.

Core components made in house, better quality control.

Time saving quick connect fittings on bypass, drain and brine line.

Brine valve with safety float to provide extra overflow protection.

Specification
Model CS10H-1017 CS10H-1035
Control System BNT-850F
Regeneration Type Down Flow
Regeneration Mode Meter Immediate, Meter Delayed, Meter Override, Vacation
Hardness
Removal
(Gram)
(@48 g/L salt dosage) 500 710
(@96 g/L salt dosage) 760 1215
(@160 g/L salt dosage) 930 1648
Tank Size 10x17 10x35
Resin Quantity(L) 14 25
Salt Storage Capacity(Kg) 23 58
Rated Service Flow(m³/H) 1.1 2.0
Back Wash Flow Rate(L/M) 7.5
9.0
Water Used Per Regeneration(L)
(@ 96 g/L salt dosage)
45 112
Product Dimension(DxWxH mm) 520x299x652 520x299x1111
Carton Size(D×W×H mm)
545x360x740 545x360x1170
Shipping Weight 22Kg 39Kg
Container Capacity(40" HQ, pcs)
396 264
Plumbing Connections 3/4" or 1" Fittings Available
Electrical Requirements Input 110V-120V / 220-240V AC 50/60 Hz
Output 12V AC 650mA
Water Supply Municipal
Water Temperature(℃ ) 4~43
Operating Pressure(MPa) 0.21~0.86
Notes: 1. The data of softener performance is only for reference, it may vary from different water qualities and applications.
2. Rated Service Flow is based on NSF/ANSI Standard 44.
